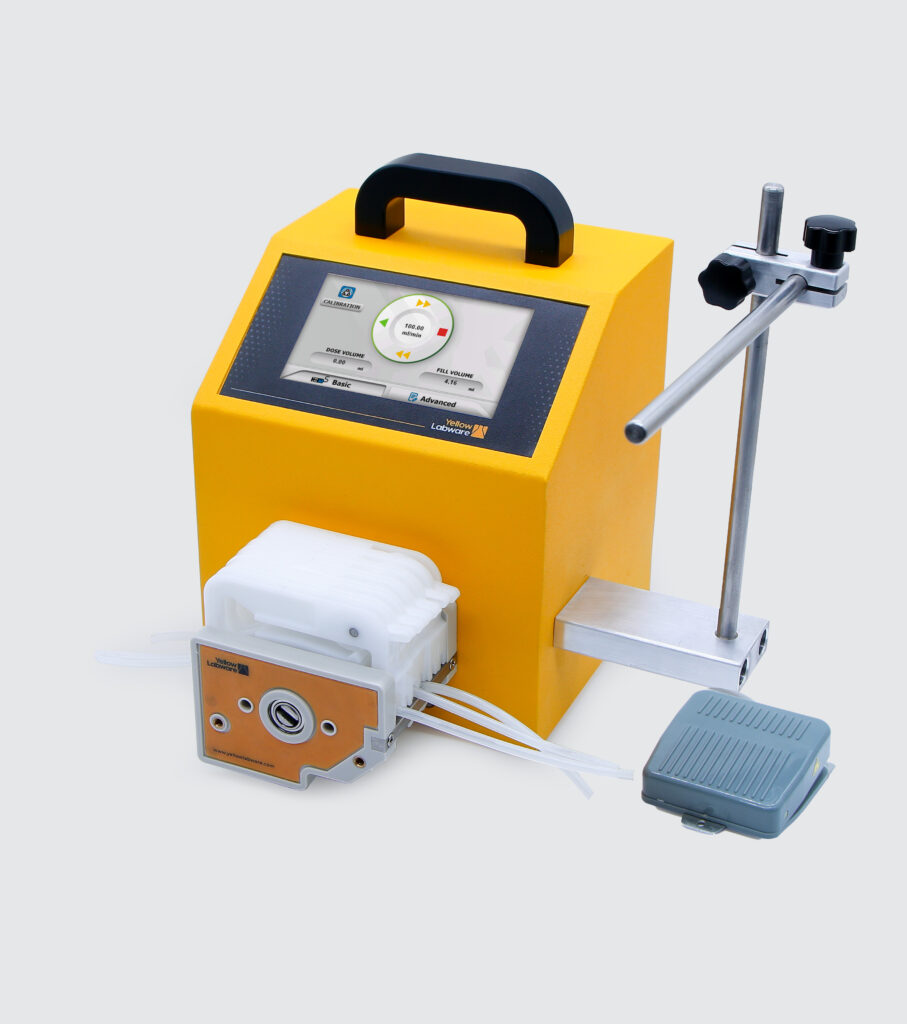

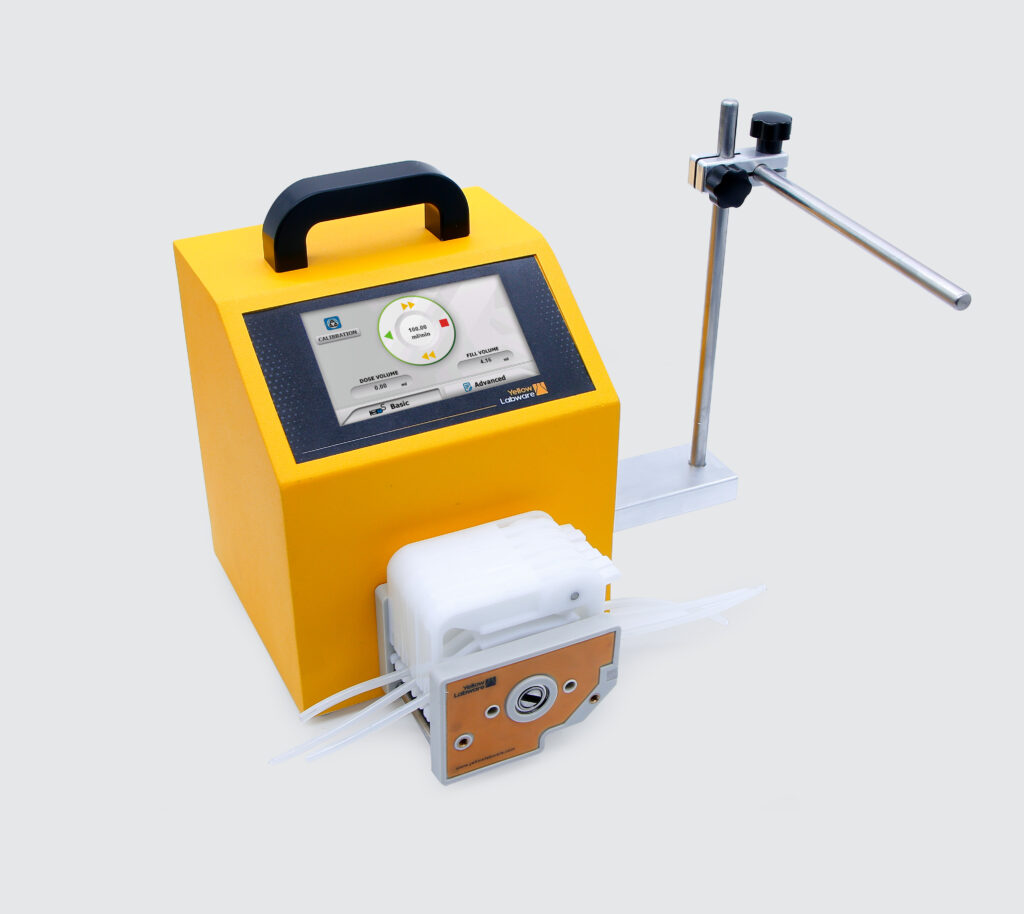

P-21 PERISTALTIC PUMP SYSTEM

Take your fluid transfer operations to the next level with the Inovenso IPS-P21 Peristaltic Pump — a next-generation, microprocessor-controlled solution designed for laboratories, industrial applications, and scientific environments demanding exceptional accuracy, flexibility, and reliability.

High-Precision Speed & Flow Control

Gain unmatched control over your processes with enhanced performance parameters:

• Speed Range: 0.1–100 RPM

• Speed Resolution: 0.1 RPM

• Flow Rate: Up to 2280 mL/min (depending on tubing size)

• Flow Calibration Mode for precise dispensing

• Cumulative Volume Display for continuous monitoring

Advanced Automation Features

Maximize efficiency with intelligent operation and convenience:

• 4.3” Color Touchscreen Interface for intuitive control

• Microprocessor Controller ensuring stable and repeatable performance

• Reversible Flow Direction for easy rinsing and line purging

• Recipe Save & Recall for routine batch operations

• Learn & Repeat Mode for automated dosing sequences

• Fast-Run Mode to quickly fill or empty tubing

Applications

Perfect for a wide range of uses:

• Laboratory Fluid Handling

• Pharmaceutical Dosing

• Biotech & Research Applications

• Industrial Fluid Transfer

• Food, Cosmetic, and Chemical Processing

Robust, Chemical-Resistant Design

Built to withstand the toughest lab and industrial environments, the IPS-P21 offers superior durability and stability for long-term performance.

• Pump Head Housing: PPS (Polyphenylene Sulfide) — resistant to heat, solvents, corrosion, and flame

• High Mechanical Strength & Electrical Insulation for safe, stable operation

• Rollers: Constructed from 304 stainless steel, ensuring smooth rotation and extended service life

Wide Tubing Compatibility & Easy Installation

Versatile design for flexible applications:

• Quick & Tool-Free Tube Installation

• Supports multiple tubing sizes, from micro-flow to high-volume transfers

• Adaptable for diverse laboratory and industrial workflows

Engineered for Real-World Conditions

Purpose-built for daily professional use:

• Operating Temperature: 0–40 °C

• Humidity Tolerance: < 80 % RH

• Power Supply:

  • AC 220 V ± 10 %, 50/60 Hz

  • AC 110 V ± 10 %, 50/60 Hz

• Compact & Lightweight Design: 4.5 kg

• Dimensions (L × W × H): 403 × 238 × 270 mm
