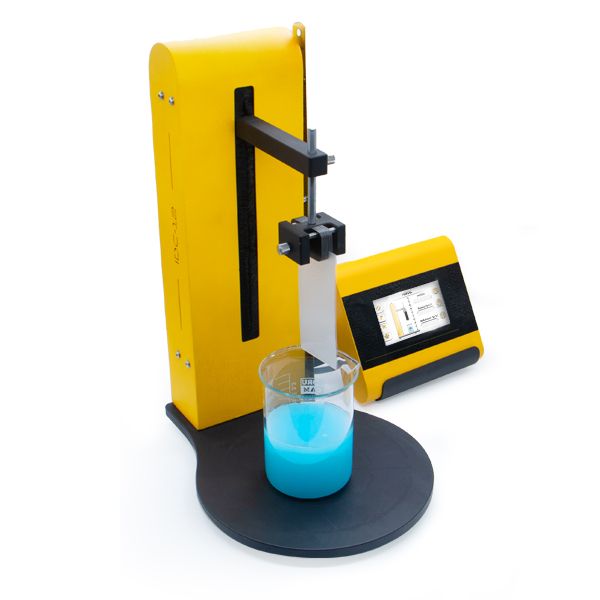

Designed for precision thin-film coating in laboratory, industrial, and research environments, the IDC-12 Dip Coater delivers exceptional control and repeatability. Its compact footprint, advanced automation, and chemical-resistant construction make it the ideal choice for surface engineering, nanotechnology, and biomedical applications.

Key Features

• Ultra-Precise Motion: Drawing speed 0.0015 – 600 mm/min; dipping/withdrawal speed 0 – 10 mm/s
• Custom Profiles: Multi-stage dipping with adjustable dwell times for exact film thickness
• Smart Automation:
  • 4.3″ color touchscreen interface
  • 20 programmable recipes, each repeatable up to 999 cycles
  • Automatic & manual operation modes
  • PC connectivity for data monitoring
• Robust Build: Corrosion- and solvent-resistant housing; DC stepping motor with lead-screw drive
• Compact & Lightweight: 9 kg | 440 × 330 × 446 mm—ideal for benchtops or fume hoods
• Dual Voltage: 110 – 220 V, 50/60 Hz | Max power consumption 36 W
• Operating Range: Temperature 0 – 40 °C | Humidity < 80 % RH

Perfect For
Material science research • Nanotechnology R&D • Biomedical coatings • Chemical and functional surface treatments.
